STREETSMART 17.5 MM 16R x 96K
View technical specifications in PDF

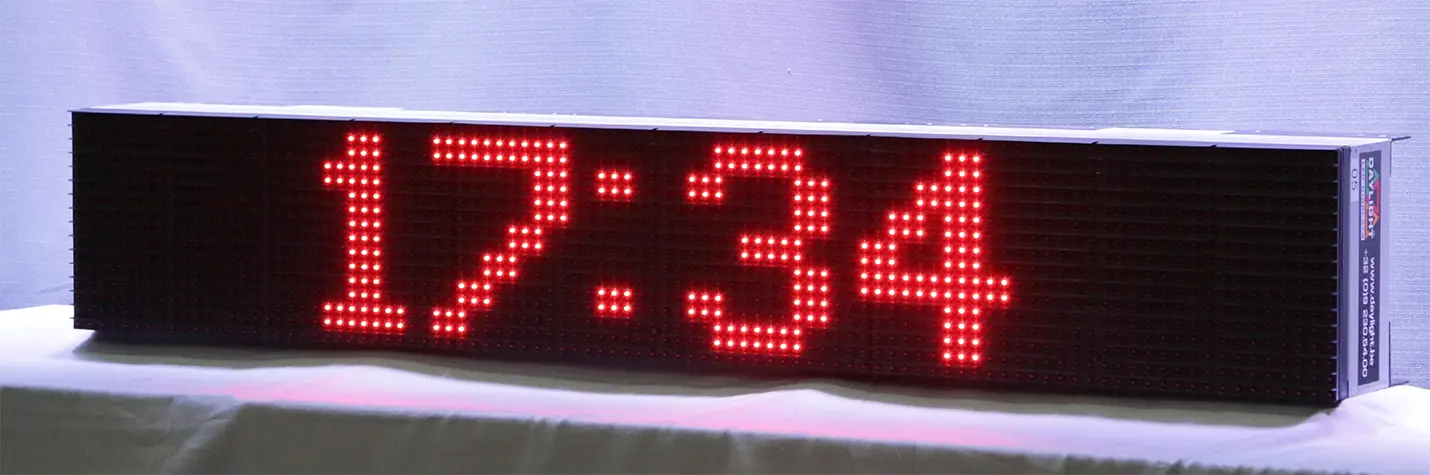

The STREETSMART 17.5 MM 16R x 96K can be used as a clock, countdown clock or timer.
It is the countdown clock featured in the film 2012 Supernova.
DISPLAY
Display dimensions: h = 280 mm x w = 1680 mm
Pixels: rows = 16 x columns = 96
Pitch: 17.5 mm
Lines per screen: 1 or 2 lines
Characters per line: 10 (1 line) / 16 (2 lines)
Character height: 262 mm / 175 mm / 122 mm
Colour: Red or Yellow (256 shades)
Brightness: 8000 nits
Horizontal viewing angle: 125 degrees in full sunlight
Vertical viewing angle: 90 degrees in full sunlight

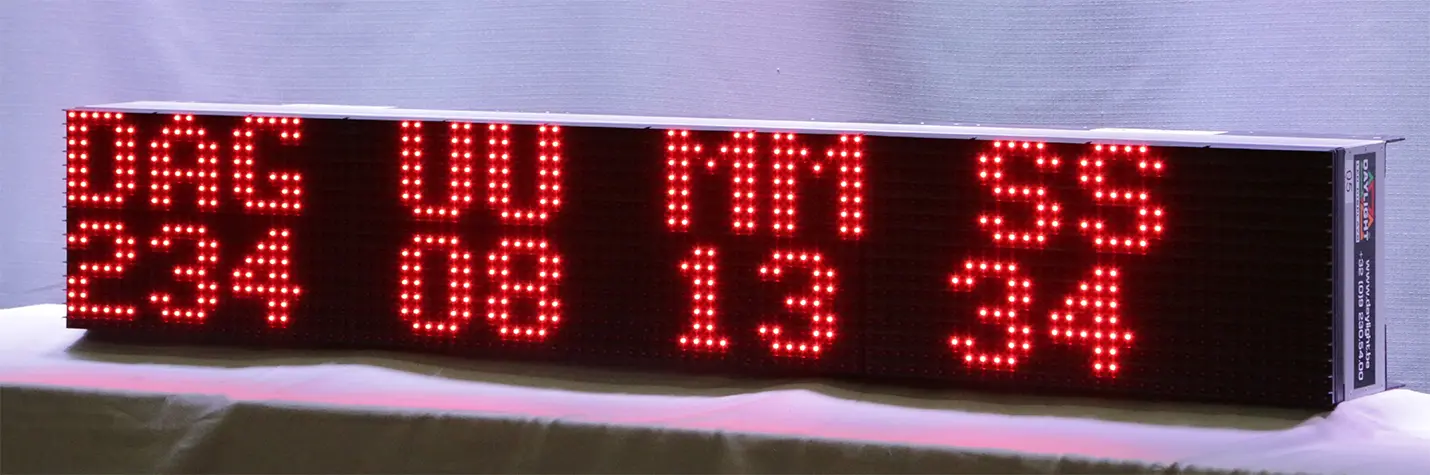

Clock applications: countdown clock, timer, count-up clock or clock
HOUSING
Housing: front-serviceable stainless aluminium box
Indoor or outdoor installation: indoor and outdoor installation
Housing dimensions: h = 290 mm x w = 1690 mm x d = 250 mm
Operating temperature: -40 °C to 50 °C
Cold start: -10 °C to 50 °C
Humidity: 0 to 95%
Weight: 32 kg (without mounting structure)
Mounting structure: the mounting structure is an option
POWER, MEMORY AND COMMUNICATION
Mains voltage / consumption: 230 VAC / 50 Hz / max. 635 watt
Programming: Countdown software
Communication: TCP/IP (ethernet) connection
